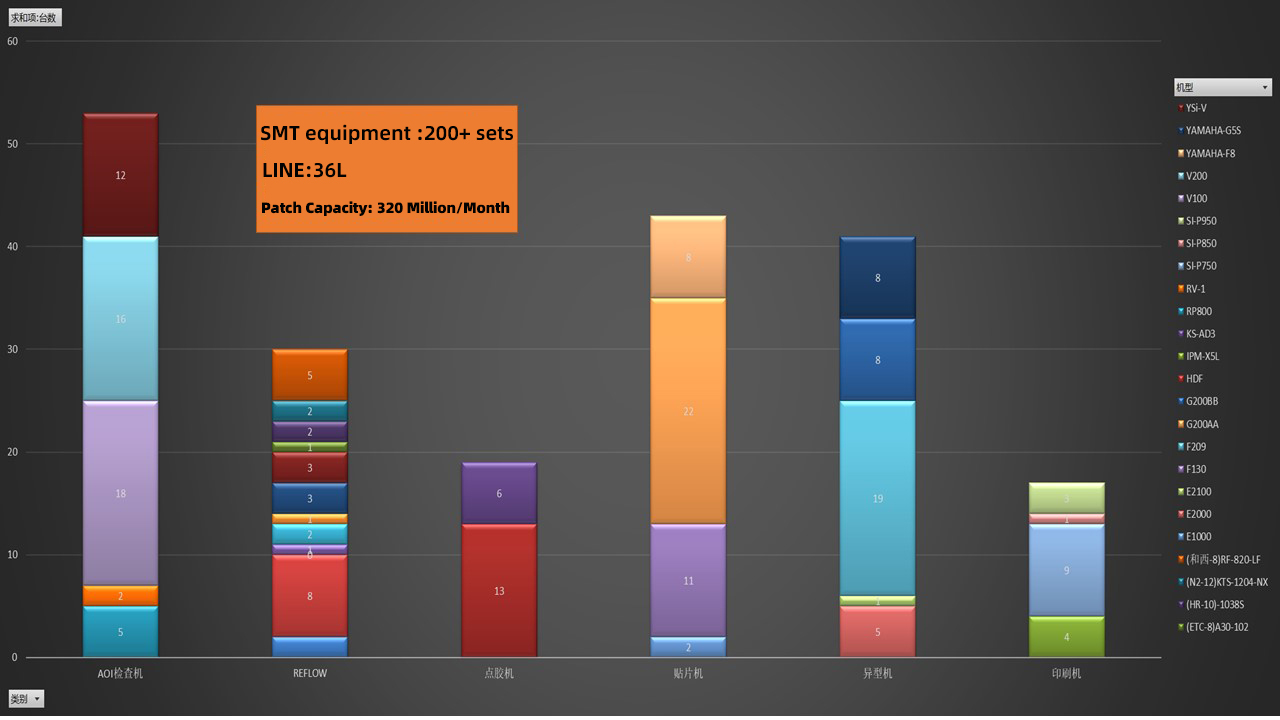

Production Scale And Production CAPA

PCBA Corresponding Ability

1、PCB

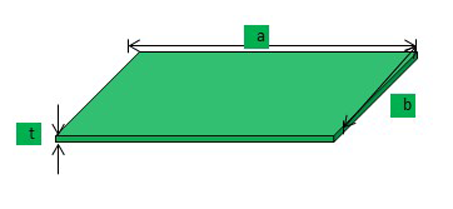

Standard PCB size:
a: 50~330mm
b: 50~250mm
t: 0.5~2.0 mm

Special correspondence, please explain in advance:
a: <50 or >330mm
b: <50 or >250mm
t: 0.3~0.5 or 2.0~5.0mm

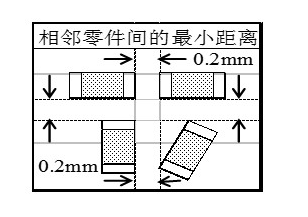

2、Part GAP

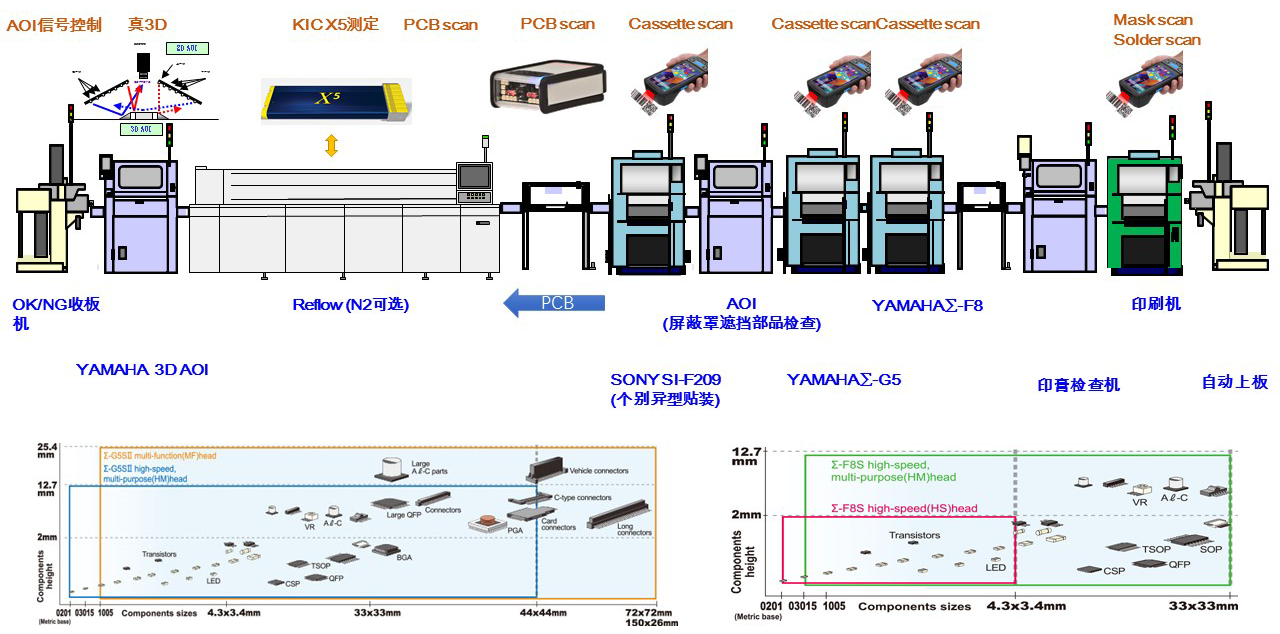

3、Component Corresponding Capability (Metric)

1. High speed universal mounting head:
03015 CHIP~□ 33mm (T: 12.7mm) (maximum height of front mounted product: 2mm)
Multi functional mounting head: 1005 CHIP~□ 72mm (T: 25.4mm) CN 150 x 26mm
2. Part Pitch: BGA/CN: 0.35mm
3. POP corresponds to
4. Sandwich corresponds to

Auxiliary Equipment
